Racelogic VBOX Video HD2 with HDMI Output, 2 Camera Track System Including CAN Splitter (RLVDHD2HTRC)

Description

Racelogic VBOX Video HD2 with HDMI Output, 2 Camera Track System Including CAN Splitter (RLVDHD2HTRC)

The Racelogic VBOX Video HD2 with HDMI Output, 2 Camera Track System Including CAN Splitter (RLVDHD2HTRC) is a motorsport video and data logging system from Racelogic for track day drivers and racers. It works as a universal system and can be fitted to supercars, track cars and race cars.

Description RACELOGIC RLVDHD2HTRC VBOX Video HD2 with HDMI Output - 2 Camera Track System Including CAN Splitter

The RACELOGIC VBOX Video HD2 Track Package is a dual-camera video and data logging system configured for installation in fully race-prepared vehicles. The package includes roll cage camera mounts, an unterminated in-car power cable, and a CAN splitter cable to support integration with motorsport electrical and data systems.

Supercar Store supplies it with doorstep delivery to Dubai, India and worldwide, and helps you with setup on WhatsApp before and after you order.

Key Specifications

What features and contents does it include?

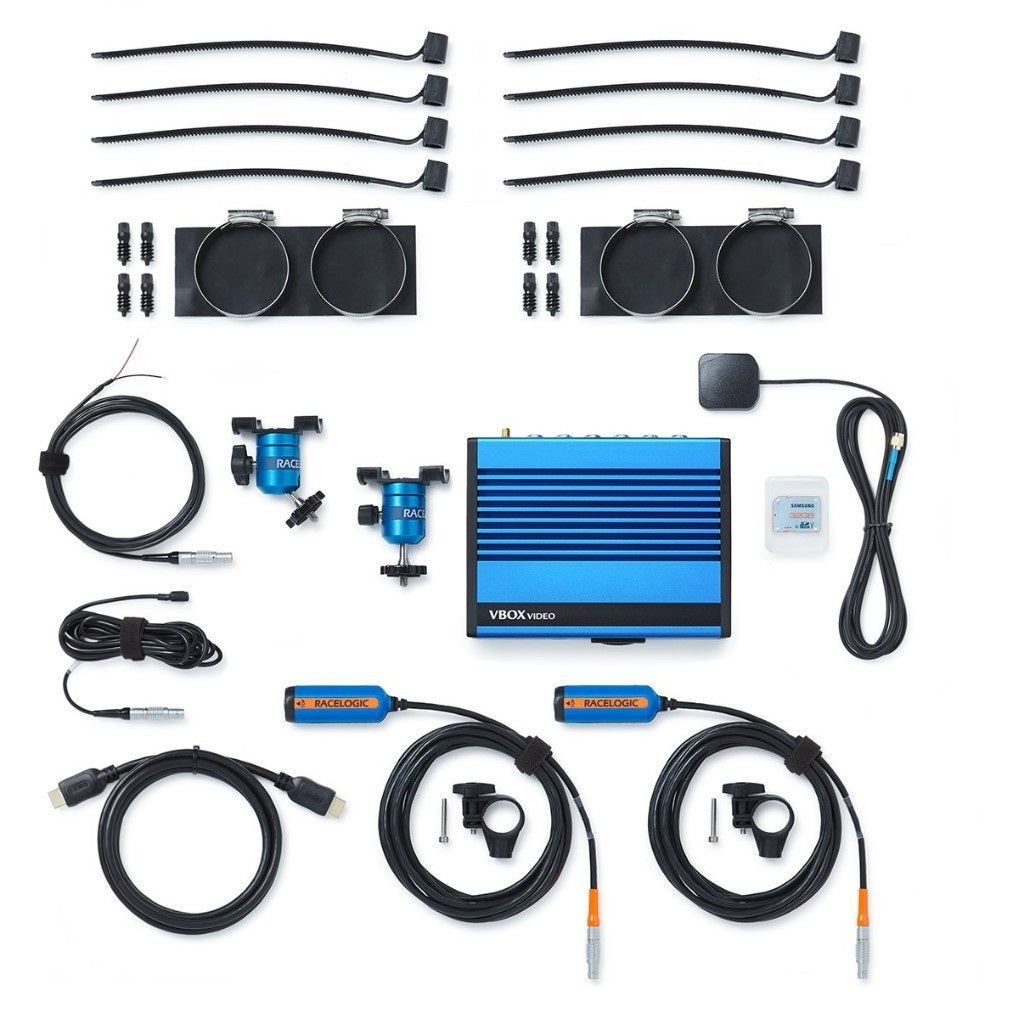

• Track-focused package with roll cage camera mounts and an unterminated power cable

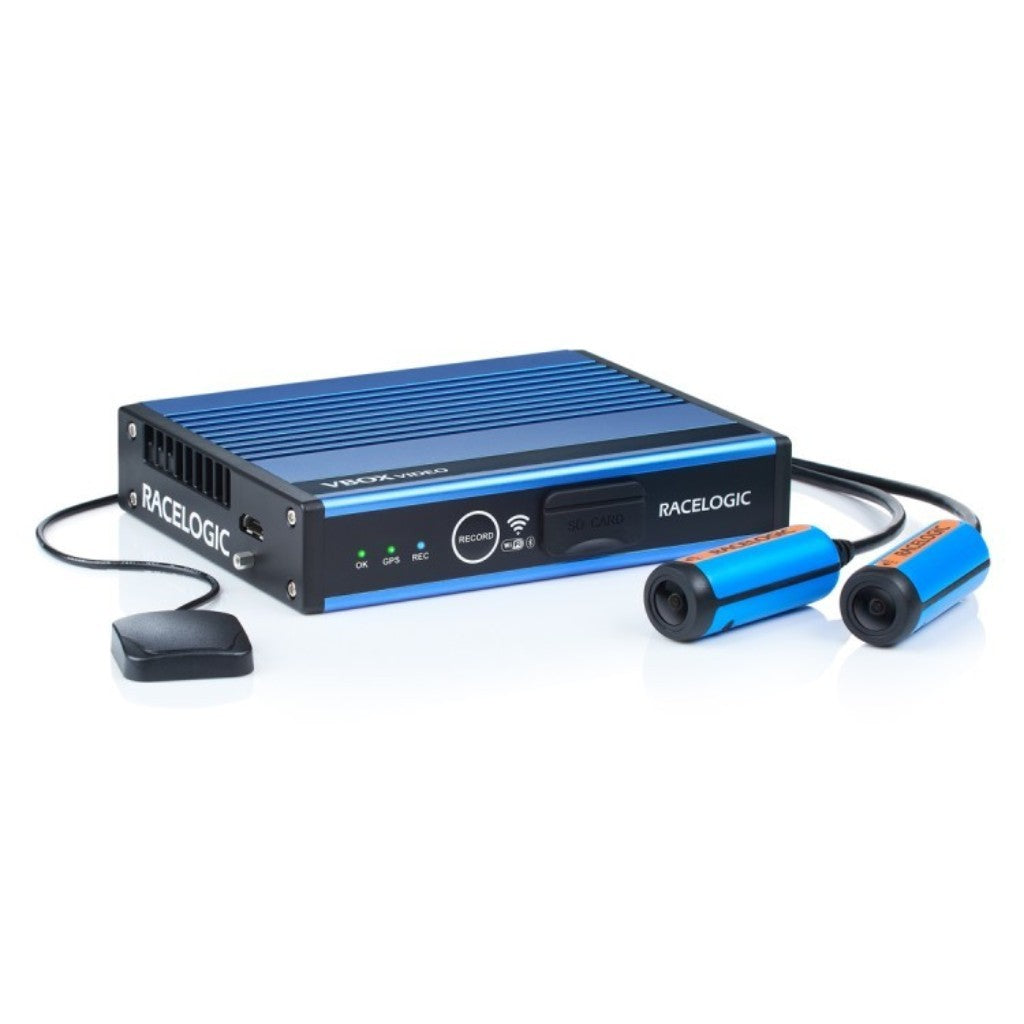

• Dual-camera recording with primary and picture-in-picture views
• Wide-angle lenses capture track activity in high-definition video
• Records directly to an SD card or USB flash drive
• Logs up to 80 channels of CAN data from compatible dashboards and ECUs
• Supports vehicle parameters including throttle angle, RPM, and brake pressure
• CAN splitter cable supports connection to the vehicle CAN network
• HDMI output provides real-time video and audio for monitoring, recording, or streaming
• Android and iOS application supports camera alignment using a live video feed
• Customizable high-definition graphics overlays for dashboard and gauge layouts
• Integrated GNSS receiver automatically recognizes racetracks and configures track maps and lap timing
• Automatic recording, pre-record buffer, and internal power backup help prevent data loss
• Specifications:
• Video Resolution: 1080p
• Frame Rate: 30 fps
• Camera Inputs: 2
• CAN Data Logging Capacity: Up to 80 channels
• GNSS Receiver Frequency: 25 Hz

Frequently Asked Questions

Will it fit my car?
It is a universal system. Send us your car details on WhatsApp and we will confirm the right setup and any extra cables or mounts you may need.

What is the part number?
The Racelogic part number is RLVDHD2HTRC.

Is it in ready stock?
Most units are special order, usually 4 to 5 weeks or the manufacturer's timeline. Message us on WhatsApp to check current availability.

Do you deliver outside the UAE?
Yes. We deliver to Dubai, across India and worldwide at a doorstep delivery price.

Can you help with installation and setup?
Yes. WhatsApp us and we will help arrange fitting and setup in Dubai.

Supercar Store supplies, fits and tests motorsport electronics locally in the UAE, with doorstep delivery to Dubai, India and worldwide. WhatsApp +971 50 308 5760 or order directly on the site.

Product Information

• Part Number: RLVDHD2HTRC
