AiM MXM Compact GPS Data Logging Dash Display

Description

AiM MXM Compact GPS Data Logging Dash Display

Display your data and improve your racing and track day experience with advanced data logging and data acquisition capabilities.

The AiM MXM Compact GPS Data Logging Dash Display is a universal motorsport dash and data logger that reads data straight from your car's ECU, so it can be fitted to supercars, track cars and race cars. Supercar Store supplies it with doorstep delivery to Dubai, India and worldwide, and confirms ECU compatibility for your car on WhatsApp before you order.

Key Specifications

A Compact GPS Dash For Motorsports

Display your data and improve your racing and track day experience with advanced data logging and data acquisition capabilities.

Why Choose the Aim MXM Data Logging Dash

The compact MXM dash display unit features advanced data logging capabilities and is designed for racers needing all the essential information to monitor the behaviour of their car and to improve their performance. This dash is designed to acquire and display data from your car's ECU, as well as from the internal GPS receiver, analogue/digital inputs and predefined math channels.

A Wide Range of Data Sources

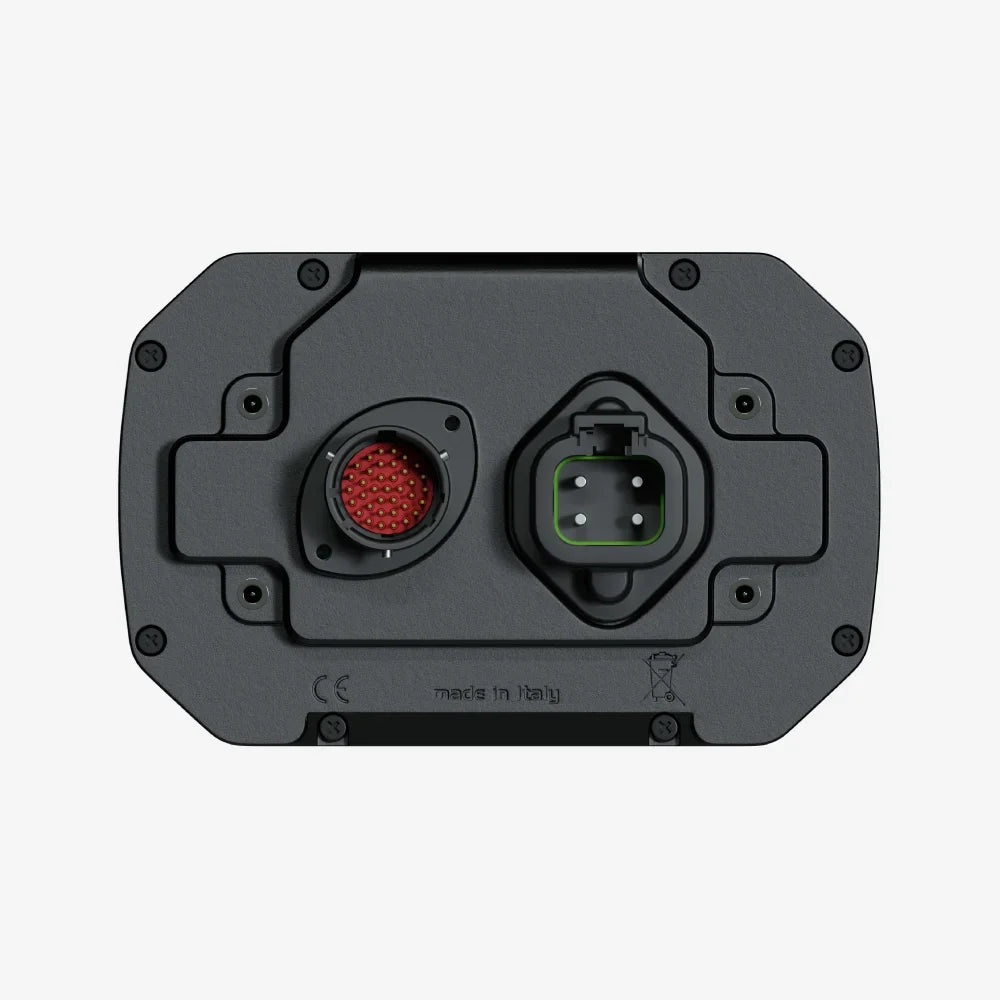

The MXM dash display features 2 CAN connections for obtaining information directly from the car's ECU, with a wide range of compatible ECU systems available to choose from. The MXM offers the most straightforward method of installation whilst offering 4 analogue and 2 digital inputs for additional data input.

Two Power Outputs

The MXM data logger features two power outputs that can drain up to 15A each. These outputs can be configured to turn on or off depending on the value of the analogue or digital inputs. This functionality allows you to automatically control external systems, such as switching additional lights on or off or activating and deactivating cooling fans or circulation pumps when specific events happen.

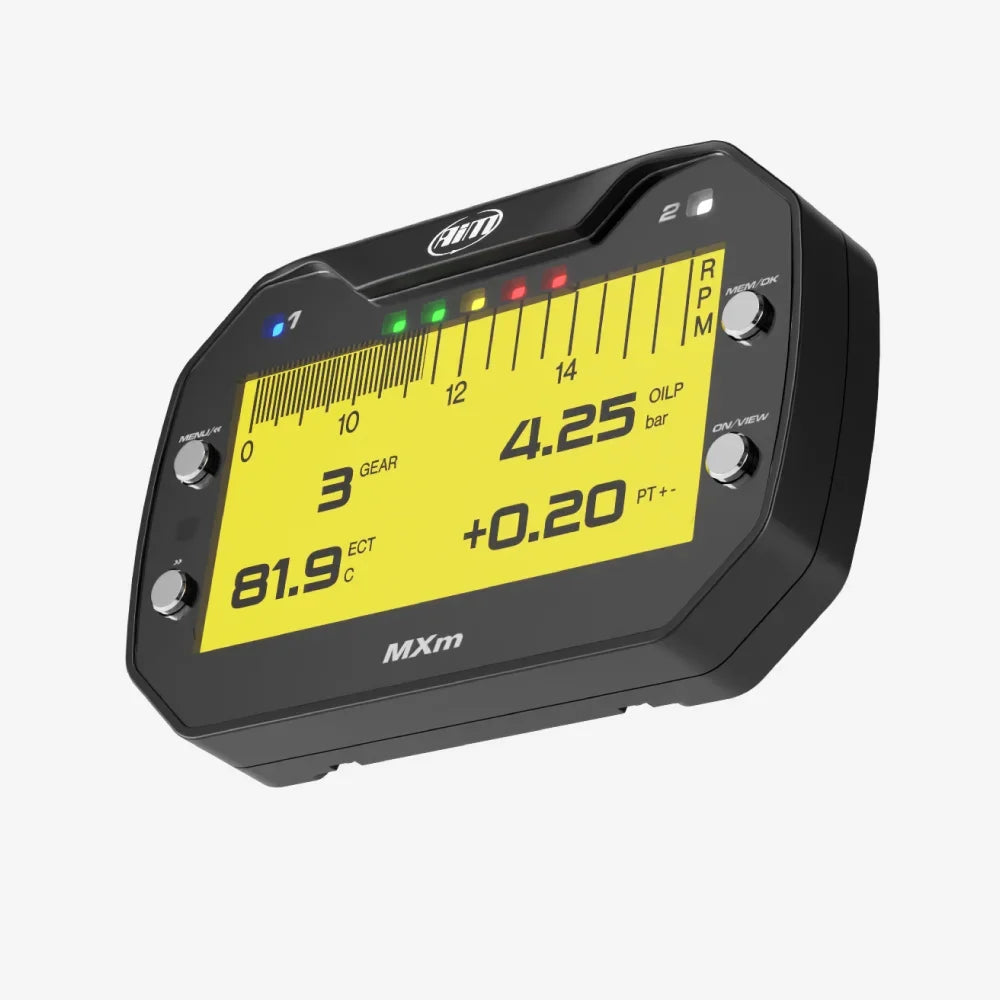

Integrated Shift Lights & Alarms

The MXM car display has an integrated shift light system that features 5 fully configurable LEDs, which can be customised to your requirements and for each gear. Two further LEDs can be configured to operate as warning alarms, allowing you to customise colours, alarm types (solid or flashing), flashing frequency and accompanying text messages. Alarm priorities can be set to suit your specific requirements.

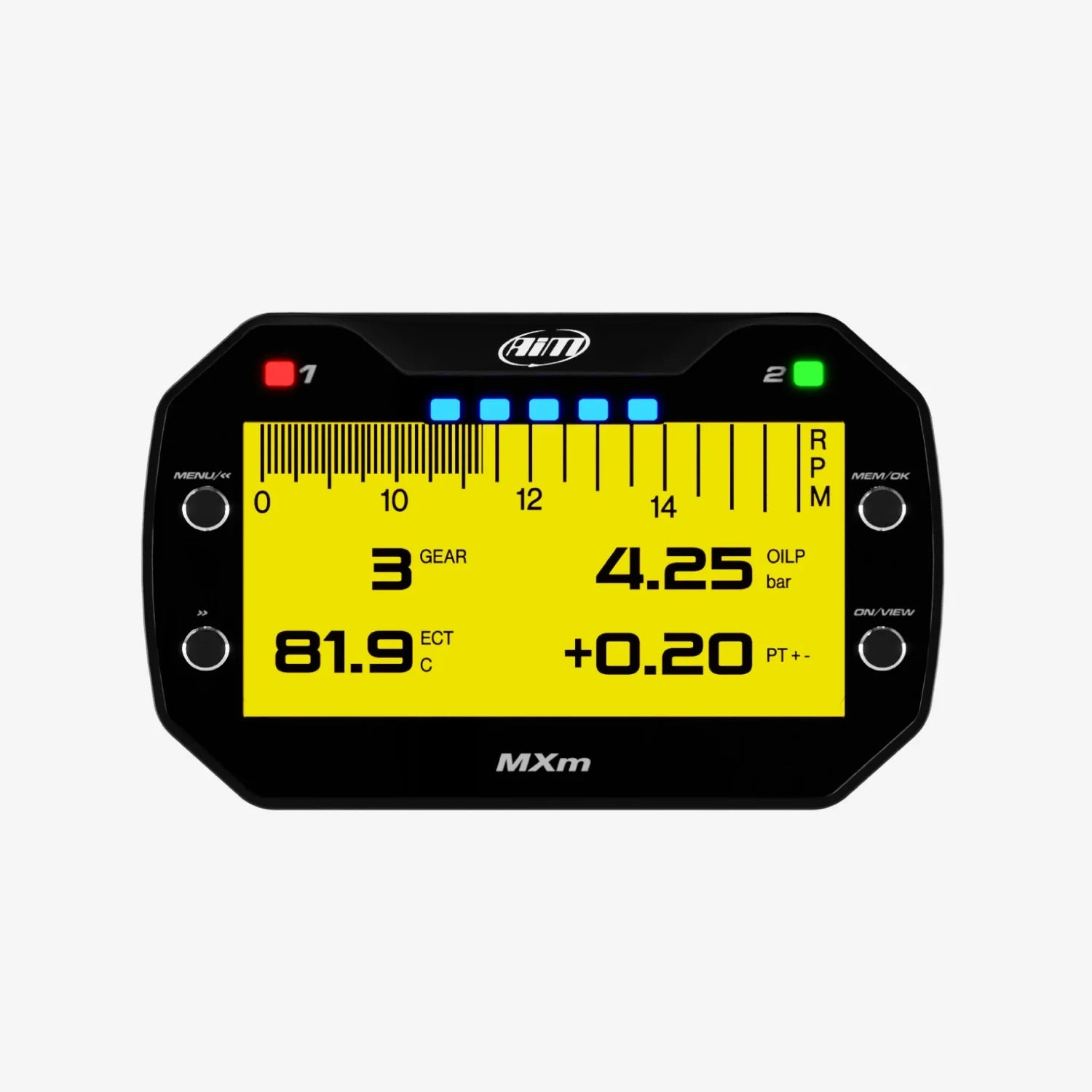

Sharp Liquid Crystal Display

Making use of a sharp liquid crystal display (LCD), you can select which information you want the MXM dash to display, and the backlight can be switched between a selection of available colours, all with high contrast and easy-to-read graphics.

Data Recall On-Screen

The information that is displayed on the screen can be fully configured to prioritise the most important information to you. If there’s too much information on the screen, you can scroll between multiple pages using the integrated buttons so that nothing is missed.

After the session has ended, all the data can be recalled on the screen, including a summary of your best laps along with max/min RPM, speed and temperatures. If you prefer going through the data in more detail, the MXM features a Wi-Fi function to enable fast and secure data transfer to a laptop or PC up to 50 metres away, so you no longer need to take the laptop to the car.

Expand Your System

Expand your MX Logger’s capabilities with a range of compatible accessories to guarantee precision and reliability.The LCU-One S allows you to perfectly tune the carburetion of your engine to keep it at its best and improve the engine's performance. Alongside the Analogue CAN Converter, you can choose, according to your needs, among 5 different split harnesses. Up to 4 thermocouples or 4 analogue channels 0-5V/0-12V are available.The SmartyCam 3 series also connects to record synchronised video and telemetry ready for analysis in Race Studio 3.

Frequently Asked Questions

Will it work with my car's ECU?
AiM supports a very wide range of ECUs. Send us your car and ECU details on WhatsApp and we will confirm compatibility before you order.

Does it log lap times?
Yes, it records and displays performance data including lap timing as described above.

Is it in ready stock?
Most AiM units are special order, usually 4 to 5 weeks or the manufacturer's timeline. Message us on WhatsApp to check current availability.

Do you deliver outside the UAE?
Yes. We deliver to Dubai, across India and worldwide at a doorstep delivery price.

Can you help with installation and setup?
Yes. WhatsApp us and we will help arrange fitting and setup in Dubai.

Supercar Store supplies, fits and tests motorsport electronics locally in the UAE, with doorstep delivery to Dubai, India and worldwide. WhatsApp +971 50 308 5760 or order directly on the site.

Product Information

• Part Number: MXM
